Export Terrain

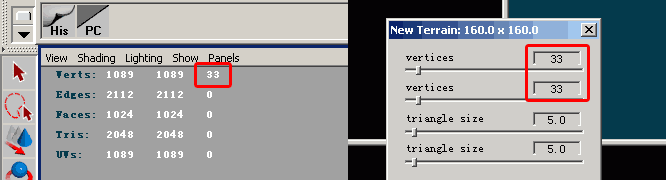

We can creat the polygon plane with the same quantity of vertex in MAYA and MED respectively.

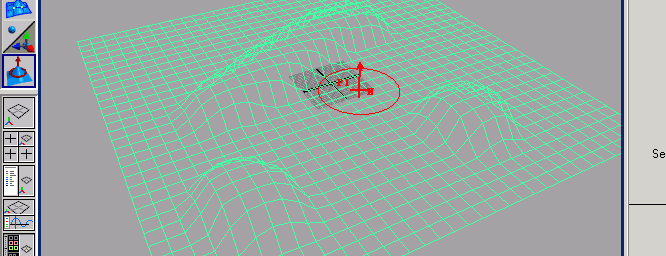

  adjusting the terrain height by using brush or imported height picture in MAYA.

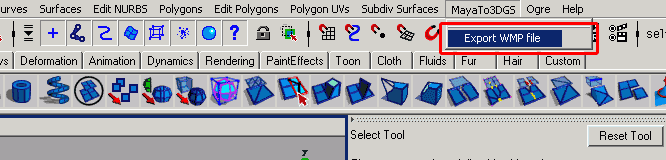

  Choosing the MAYA menu named [MayaTo3DGS/export WMP file] to open exporter window.

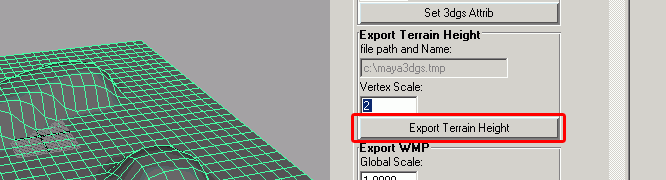

  Press [Export Terrain Height] in exporter window.

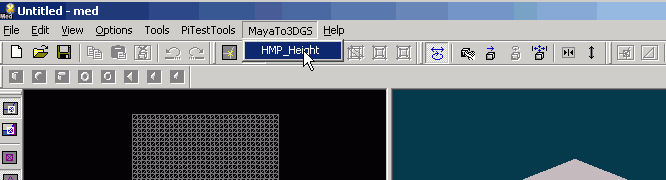

  Then transforming into the MED of 3DGS and carrying out [MayaTo3DGS/HMP Height] in the menu bar.

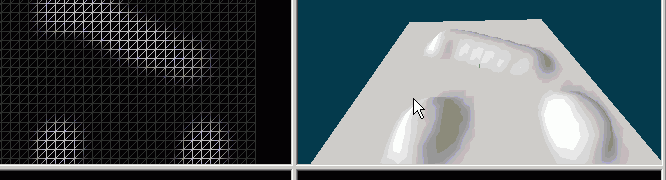

  Here You will see that the terrain exported becomes the same as in MAYA!
